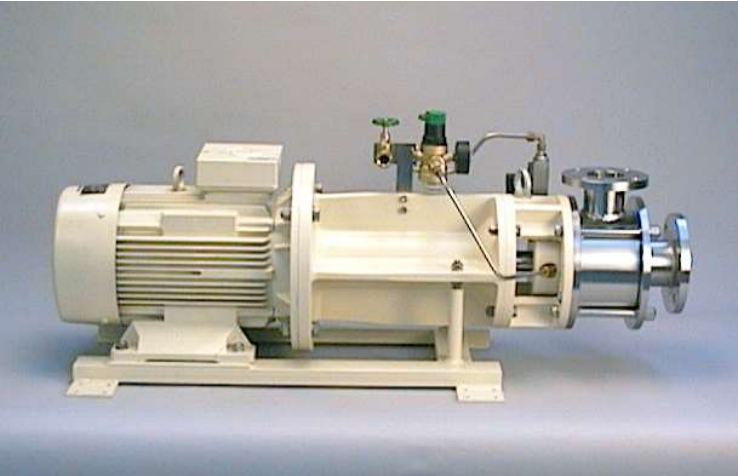

The ystral Z-inline Rotor-Stator is a high-performance inline disperser engineered for continuous, air-free dispersion of emulsions and suspensions. Featuring interchangeable rotor-stator ring combinations and a closed-system design, it delivers precise particle size reduction down to 1µm for emulsions and 80nm–30µm for suspensions. Available in single-stage and three-stage configurations with self-pumping capability up to 10,000 mPas.
Available Models
Z-inline / 1-Stage
Z80/3 – 3-Stage
Get a Custom Quote
Contact us for pricing & availability
⚙️
Key Highlights
At-a-glance performance metrics
🔬
Emulsion Particle Size
Down to 1µm
🧪
Suspension Range
80nm – 30µm
🔄
Dispersion Stages
1 or 3 Stage
💧
Max Viscosity (Self-pump)
10,000 mPas
🛠️
Rotor-Stator Rings (3-stage)
18 per pass
✅
Cleaning
CIP Ready
📋
Z-inline Rotor-Stator
Full Technical Specifications
Operating Principle
Rotor-stator inline dispersion via mechanical & hydraulic shear forces
Available Configurations
Single-stage / Three-stage (Z80/3)
Dispersion Rings (3-stage)
18 rings per single passage (3 stages × 3 rotors × 3 stators)
Emulsion Particle Size
Down to 1µm
Suspension Particle Size
80nm – 30µm
Self-Pumping Viscosity Limit
Up to 10,000 mPas
High Viscosity Operation
External pump required above 10,000 mPas
Flow Direction
Reversible
Liquid Inlets
Two or more liquids combinable at chamber inlet
Rotor-Stator Tooling
Interchangeable rings with variable slot sizes
System Type
Closed system — air-free dispersion
First Stage Option
Additional pumping impeller available
Cleaning
Easy disassembly & CIP (Clean-in-Place)
Installation
Simple integration into existing pipeline systems
Process Control
Controllable passages, dwell time & chamber pressure
