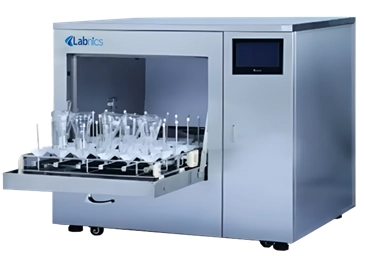

Automatic Glassware Washer NAGW-100 features a high-efficiency cleaning system with optimized spray arms and nozzles and a self-cleaning program. Equipped with PLC touch screen control, a reinforced glass window, and corrosion-resistant stainless-steel interior and exterior. Includes an electronic security door lock and emergency switch for safe operation.
Automatic Glassware Washer
Available Models
NAGW-100
NAGW-102
NAGW-205
Get a Custom Quote

Contact us for pricing & availability

🧼

Key Highlights

At-a-glance performance metrics
📦
Max Capacity
Up to 420 L
💧
Water / Cycle
15 L
🔇
Noise Level
≤ 50 dB
Total Power
6 kW
🔌
Power Supply
AC 220V
⚖️
Gross Weight
150 kg
📋

Automatic Glassware Washer NAGW-100

Full Technical Specifications
Capacity
NAGW-100: 120 L  |  NAGW-102: 320 L  |  NAGW-205: 420 L
Water Consumption / Cycle
15 L
Inlet Water Pressure
0.3 to 0.8 MPa
Noise
≤ 50 dB
External & Internal Material
Stainless Steel
Overall Power Consumption
6 kW
Power – Water Washing
0.75 kW
Power – Water Heating
5 kW
Power – Drying
2.1 kW
Cleaning Racks
1 pcs
Power Supply
AC 220V, 50/60 Hz
Washer Chamber (W × D × H)
600 × 629 × 465 mm
External Size (W × D × H)
980 × 740 × 870 mm
Packing Size (W × D × H)
1080 × 990 × 1065 mm
Gross Weight
150 Kg
