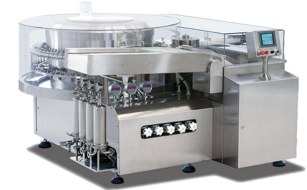

The Automatic Rotary Gripper Type Ampoule Washing Machine (SMPRAW Series) is a high-throughput washing solution for ampoules and vials. It employs a 6-stage washing sequence — re-circulated water, compressed air, demineralised water, compressed air, WFI water, and final compressed air — ensuring thorough inner and outer cleaning. Available in two models supporting up to 240 containers/minute, compatible with ampoule diameters 9–21.5 mm and vial diameters 14–56 mm.

Available Models

SMPRAW-120

SMPRAW-240

Get a Custom Quote

⚡

Key Highlights

At-a-glance performance metrics

🚀

Max Production Rate

240 containers/min

💉

Ampoule Diameter

9 – 21.5 mm

🧪

Vial Diameter

14 – 56 mm

🔄

Wash Stages

6 Stage Process

⚡

Power Supply

4 HP, 3Ph, 50 Hz

🪣

Water Tanks

3 × 25 L Centrifugal

🔄

6-Stage Washing Sequence

Inner & outer cleaning process

1st Wash — Re-circulated Water (Inner / Outer)
2nd Wash — Compressed Air
3rd Wash — D.M. Water (Inner / Outer)
4th Wash — Compressed Air
5th Wash — W.F.I. Water (Direct input from utility loop connection)
6th Wash — Compressed Air

📋

Full Technical Specifications

Comparative model parameters

Parameter	SMPRAW-120	SMPRAW-240
Production Rate	70 to 120 Containers/Min	90 to 240 Containers/Min
Ampoule Diameter	9 mm to 21.5 mm	9 mm to 21.5 mm
Ampoule Height	60 mm to 140 mm	60 mm to 140 mm
Vial Diameter	14 mm to 56 mm	14 mm to 56 mm
Vial Height	32 mm to 110 mm	32 mm to 110 mm
Power Specification	4 H.P., 3 Phase, 50 Hz, 4 Wire	4 H.P., 3 Phase, 50 Hz, 4 Wire
Optional (PLC HMI)	PLC with MMI Aluminium Profile Cabinet	PLC with MMI Aluminium Profile Cabinet
Utility	Air: 20 CFM; Water: 200–500 L/hr (container dependent)	Air: 20 CFM; Water: 200–500 L/hr (container dependent)
Water Tank & Pump	3 Nos., 25 L each, Centrifugal Pump	3 Nos., 25 L each, Centrifugal Pump
Overall Dimension	2050 (L) × 2000 (W) × 1210 (H) mm	2450 (L) × 2000 (W) × 1300 (H) mm
