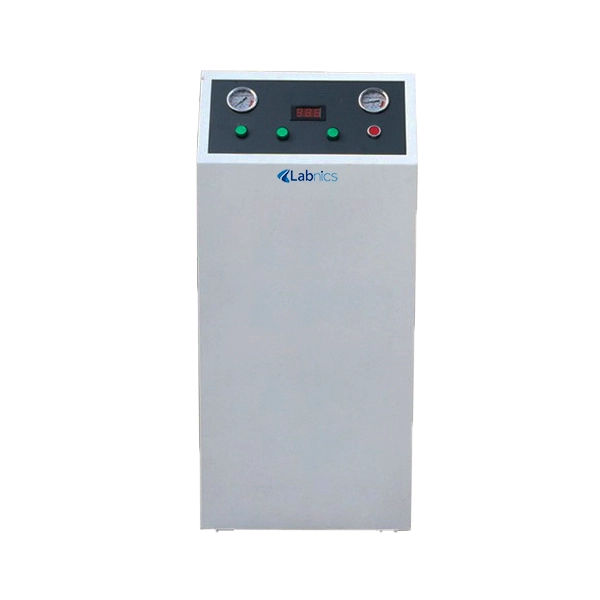

Nitrogen Gas Generator NNGG-100 is an on-site Pressure Swing Adsorption (PSA) unit that compresses atmospheric air via an air compressor. Air passes through tightly packed Carbon Molecular Sieve (CMS) columns, allowing nitrogen to pass while oxygen and other gases are adsorbed — delivering high-purity nitrogen of 99.9% to 99.999% for continuous supply requirements.
Nitrogen Gas Generator
Get a Custom Quote

Contact us for pricing & availability

🏭

Key Highlights

At-a-glance performance metrics
🌬️
Gas Production
2–3 m³/h
N₂ Purity
99.9–99.999%
📥
Intake Pressure
0.6–0.8 MPa
📤
N₂ Pressure
0.1–0.6 MPa
Power
50 W
⚖️
Weight
75 kg
📋

Nitrogen Gas Generator NNGG-100

Full Technical Specifications
Gas Production Capacity
2 – 3 m³/h
Nitrogen Purity
99.9% – 99.999%
Intake Pressure
0.6 – 0.8 MPa
Nitrogen Pressure
0.1 – 0.6 MPa
Display
LED
Power Consumption
50 W
Power Supply
AC 110 / 220 V, 50 / 60 Hz
Dimensions (W × D × H)
600 × 500 × 1250 mm
Weight
75 Kg
