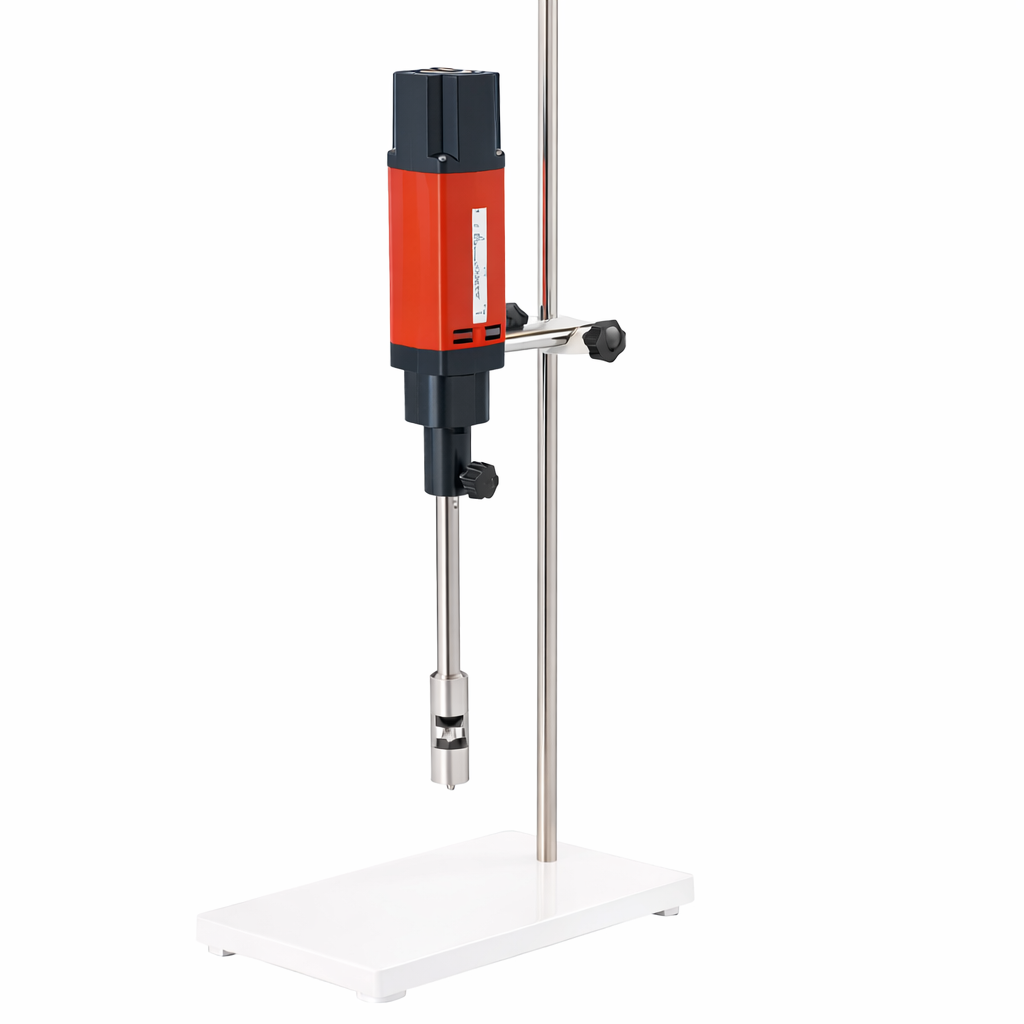

Laboratory Series X10

The Ystral Laboratory Series X10 is a high-performance laboratory dispersing and mixing system designed for batch sizes of 0.2 ml to 7,500 ml. Available in electric and pneumatic drive variants — including the X10/25, X10/25P, and X10/20 E3 — it delivers stepless speed adjustment from 4,000 to 25,000 rpm. The modular system supports a wide range of exchangeable generators for mixing, dispersing, and mix-dispersing applications, making it ideal for R&D and quality control labs.

Available Models

X10/25

X10/25P

X10/20 E3

Get a Custom Quote

⚡

Key Highlights

At-a-glance performance metrics

🚀

Max Speed

Up to 25,000 rpm

⚡

Max Power

1,050 W

🧪

Batch Volume

0.2 ml – 7,500 ml

🔧

Drive Types

Electric & Pneumatic

🔄

Speed Control

Stepless / Integrated

🛠️

Generators

Exchangeable

📋

Drive Specifications

All three X10 drive variants compared

Parameter	X10/25	X10/25P (Pneumatic)	X10/20 E3
Voltage	230 V 50/60 Hz / 115 V 60 Hz	—	230 V 50/60 Hz / 115 V 60 Hz
Compressed Air	—	6 bar / 0.4 m³/min	—
Power	500 W	300 W	1,050 W
Speed (nominal)	11,000 – 24,000 rpm	11,000 – 20,000 rpm	4,000 – 25,000 rpm
Speed Control	Stepless via integrated controller	Stepless via throttle valve	Stepless via integrated controller

🔩

Available Generators & Tools

Modular accessories for X10 series

Jetstream Mixing Generator (small)

500 – 5,000 ml · Stator dia. 30 mm

Jetstream Mixing Generator (large)

500 – 7,500 ml · Stator dia. 45/55 mm

Dispermix Generator

500 – 5,000 ml · Stator dia. 40/55 mm · Slots 4.0 mm

Dispersing Generator (coarse)

500 – 2,500 ml · Stator dia. 30 mm · Slots 3.0 mm

Dispersing Generator (fine)

500 – 2,500 ml · Stator dia. 30 mm · Slots 1.5 mm

10G / 10F / 10MG

30 – 150 ml · 10G: 2.0 mm · 10F: 0.5 mm · 10MG: with cutting knives

18G / 18F

150 – 1,500 ml · 18G: 3.0 mm · 18F: 1.5 mm

25G / 25F

500 – 2,500 ml · 25G: 3.0 mm · 25F: 1.5 mm

20DG / 20DF (with mechanical seal)

250 – 1,500 ml · Seal: ceramic/ceramic or ceramic/carbon

25DG / 25DF (with mechanical seal)

500 – 2,500 ml · Seal: ceramic/ceramic or ceramic/carbon

6G (micro)

0.2 – 50 ml · Shaft 6 mm · Slots 0.5 mm

10T/Y

200 – 1,000 ml · Stator dia. 20/26 mm

Shaft 30D (mechanical seal)

Ceramic/carbon · Immersion depth: 190 mm

🗂️

Stands & Accessories

Complete lab setup components

PS1

Plate stand

KL1

Cross clamp for plate stand PS1

DA1

Digital speed indicator with sensor for drives X10/25 and X10/20

GH1

Beaker clamping device for plate stand PS1

AH1

Cover hood for sterilisation of shafts/tools from X10 series with mechanical seal

Z22

Inline dispersing unit · Hose-fitting 20×26 mm · For shafts 20DG and 20DF
