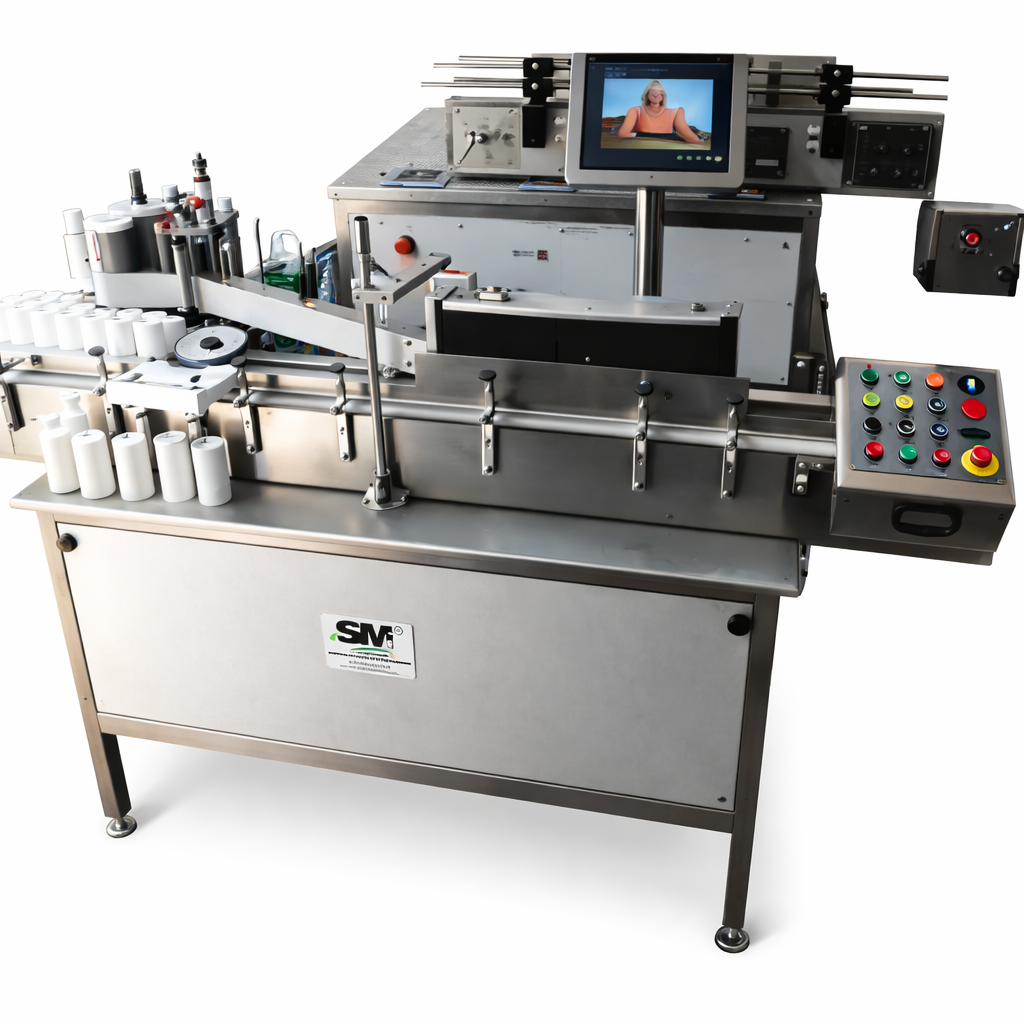

The SMPSL-150 Sticker Labeling Machine delivers an output of 3,600 to 9,000 containers/hour and supports fill sizes from 5 ml to 1000 ml. Operating left to right, it features a 0.5 HP conveyor motor, 220V pressing device motor, and a 6V DC sticker roll stepper motor. The conveyor height is adjustable from 860 to 910 mm, making it adaptable for various container shapes and sizes. Net weight is 350 Kg with a compact footprint suitable for integration into packaging lines.
Available Models
SMPSL-150
Get a Custom Quote
Contact us for pricing & availability
⚡
Key Highlights
At-a-glance performance metrics
🚀
Output / Hour
3,600 – 9,000 Nos.
💧
Fill Size
5 ml to 1,000 ml
📏
Conveyor Height
860 – 910 mm
⚡
Electrical
0.5 HP, 415V, 50 Hz
📦
Net Weight
350 Kgs
➡️
Direction
Left to Right
📋
Full Technical Specifications — SMPSL-150
Complete machine parameters
Model
SMPSL-150
Direction of Movement
Left to Right
Output / Hour
3,600 to 9,000 Nos. (depending on container shape & label size)
Fill Size
5 ml to 1,000 ml
Electrical Specification
0.50 HP, 415 Volts, 50 Hz
Conveyor Motor
0.25 HP
Pressing Device Motor
220 Volts, 50 Hz
Sticker Roll Stepper Motor
6V DC
Height of Conveyor
860 mm to 910 mm (can be supplied as per customer requirements)
