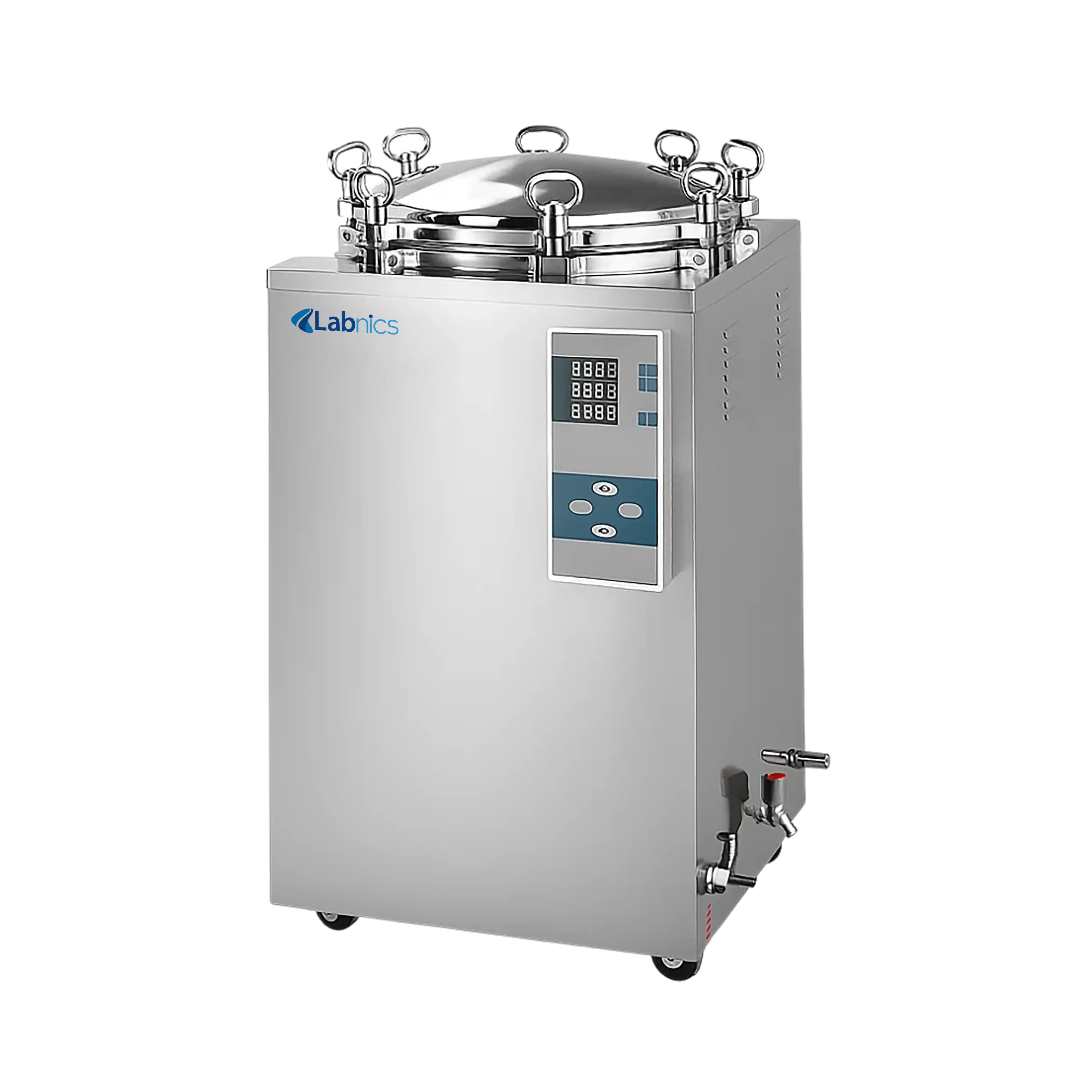

Vertical Autoclave NVA-100 is a vertical pressure steam sterilizer with an automatic pressure-temperature controller. It functions with a combination of high temperatures and pressure to decontaminate and sterilize biological waste, culture media, instruments, and lab ware. The whole body is highly durable 304 stainless steel with an installed electric heater for effective sterilization — user-friendly and energy efficient.
Vertical Autoclave NVA-100
Available Models
NVA-100
NVA-101
NVA-103
NHA-300
NHA-302
Get a Custom Quote

Pricing varies by model & capacity

Key Highlights

At-a-glance performance metrics
🧪
Max Capacity
Up to 500 L
🌡️
Working Temp
134°C
💨
Working Pressure
0.22 MPa
🎯
Heat Fluctuation
≤ ±1°C
⏱️
Timer Range
0–99 hr
🔋
Power
2.5 kW
📋

Vertical Autoclave NVA-100

Full Technical Specifications
Capacity
NVA-100: 35 L  |  NVA-101: 50 L  |  NVA-103: 100 L  |  NHA-300: 280 L  |  NHA-302: 500 L
Body
304 Stainless Steel
Door
Wheel-type, Quick-open door
Chamber Volume
Φ 318 × 450 mm
Working Pressure
0.22 MPa
Working Temperature
134°C
Maximum Working Pressure
0.23 MPa
Heat Fluctuation
≤ ±1°C
Timer Range
0–99 min / 0–99 hour 59 min
Temperature Adjust Range
105°C – 134°C
Power
2.5 kW / AC220V, 50Hz
Display
LED Display
Overall Dimension
480 × 460 × 850 mm
Packing Dimension
570 × 550 × 970 mm
Net Weight
42 kg
Gross Weight
56 kg
