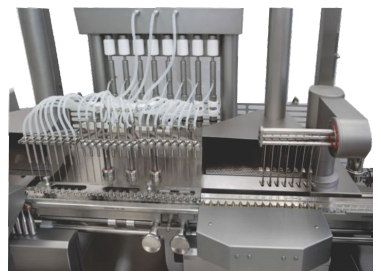

The SMPAFS-300A is an advanced high-speed vertical ampoule filling and sealing machine with eight heads, delivering 60 to 280 ampoules/minute with 0.5 ml to 10 ml filling capacity in a single dose. It handles ampoule sizes 1 ml to 10 ml open mouth glass ampoules. Ampoules are infed via SS conveyor from a sterilizing tunnel, transferred to a segment wheel, processed vertically station by station, and discharged to the collection tray after sealing. Has CE certification and is available as SMPAFS-80, 120, 240, 300A (High Speed) models.
Automatic Ampoule Filling Sealing Machine SMPAFS-300A
Available Models
SMPAFS-80
SMPAFS-120
SMPAFS-240
SMPAFS-300A
Get a Custom Quote

Contact us for pricing & availability

Key Highlights

At-a-glance performance metrics
🚀
Output / Minute
60–280 ampoules
💉
Ampoule Sizes
1 ml to 10 ml
🔬
Filling Capacity
0.5 ml to 10 ml
🔩
Fill Heads
Eight (Vertical)
Power Require
2 HP, 380V, 3Ph
📦
Gross Weight
1900 Kg (w/ case)
📋

Full Technical Specifications

SMPAFS Series
Model No.
SMPAFS – 80 / 120 / 240 / 300A (High Speed) — Attached to Sterilizing Tunnel
On Line Model
Available
Ampoule Sizes
1 ml to 10 ml Open Mouth Glass Ampoules
Filling Capacity
0.5 ml to 10 ml in Single Dose (with change parts)
Filling Type
Piston Syringe Type (Volumetric); Servo Pumps Optional
Contact Parts
Stainless Steel AISI 316L (Filling Nozzle, Syringe & Pumps)
Output / Minute
60 to 280 Ampoules/Minute (depends on ampoule sizes)
No. of Heads for Fill & Seal
Eight (Vertical)
Gases Required for Sealing
LPG & Oxygen (Mixture)
Nitrogen Purging
Available (Pre & Post)
Pre Heating
Available
Power Require
2 H.P., 380V, 3 Phase, 50 Hz (4 Core Wire Systems) or 2 H.P., 220V, 1 Phase, 50 Hz — Customised
Overall Dimensions
2950 mm (L) × 1200 mm (W) × 1500 mm (H)
Net Weight
1550 Kgs.
Gross Weight (with wooden case)
1900 Kgs.
