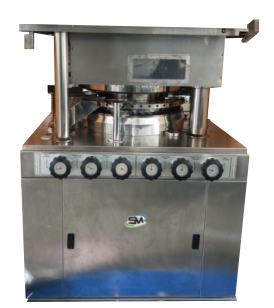

Automatic Double Rotary High Speed Tablet Press Machine SMP-IV-45 D Tooling
The Automatic Double Rotary High Speed Tablet Press Machine SMP-IV-45 D Tooling is a heavy-duty, high-capacity rotary tablet press available in three models — SMP-PRESS IV 45, IV 61, and IV 75. With a maximum output of up to 5,40,000 tablets per hour, it supports D, B, and BB tooling types. Equipped with hydraulic power pack, HMI controls, multi-motor drive, and a 6mm acrylic guard with aluminium frame, it is built for demanding GMP pharmaceutical environments.
Available Models
SMP-PRESS IV 45
SMP-PRESS IV 61
SMP-PRESS IV 75
Get a Custom Quote
Contact us for pricing & availability
⚡
Key Highlights
At-a-glance performance metrics
🏭
Max Output
5,40,000 tab/hr
⚙️
Max Stations
75 STN
🔩
Max Pressure
100 kN
📐
Max Tablet Dia.
25 mm (Round)
⚡
Main Motor
11.25 kW / 15 HP
🪣
Hopper Capacity
17 Litres
📋
Comparative Model Specifications
SMP-PRESS IV 45 / IV 61 / IV 75
Parameter
IV 45
IV 61
IV 75
Number of Stations
45
61
75
Type of Tooling (AS PER EU1)
D
B
BB
Output – Tablet/Hour (Min./Max.)
41,760 / 3,25,000
53,280 / 4,39,000
67,680 / 5,40,000
Max Operating Pressure (kN)
100
65
65
Max Tablet Diameter Round (mm)
25
16
11
🔧
Full Technical Specifications
Common parameters across all models
Max Tablet Thickness (mm)
8.5 mm
Max Depth of Fill (mm)
4.5–10 for "D" & "B" & "BB" Tooling; 8.5–14 "D" & "B" & "BB" Tooling; 12.5–20 Suitable for "D" Tooling
