Automatic Colorimeter NACM-100 offers precise color evaluation with chromaticity accuracy up to 0.0001. Our compact design includes a built-in thermal printer for instant documentation. This instrument provides stable measurements even under varying temperature conditions. It has excellent repeatability and long-term accuracy for quality control and research applications.

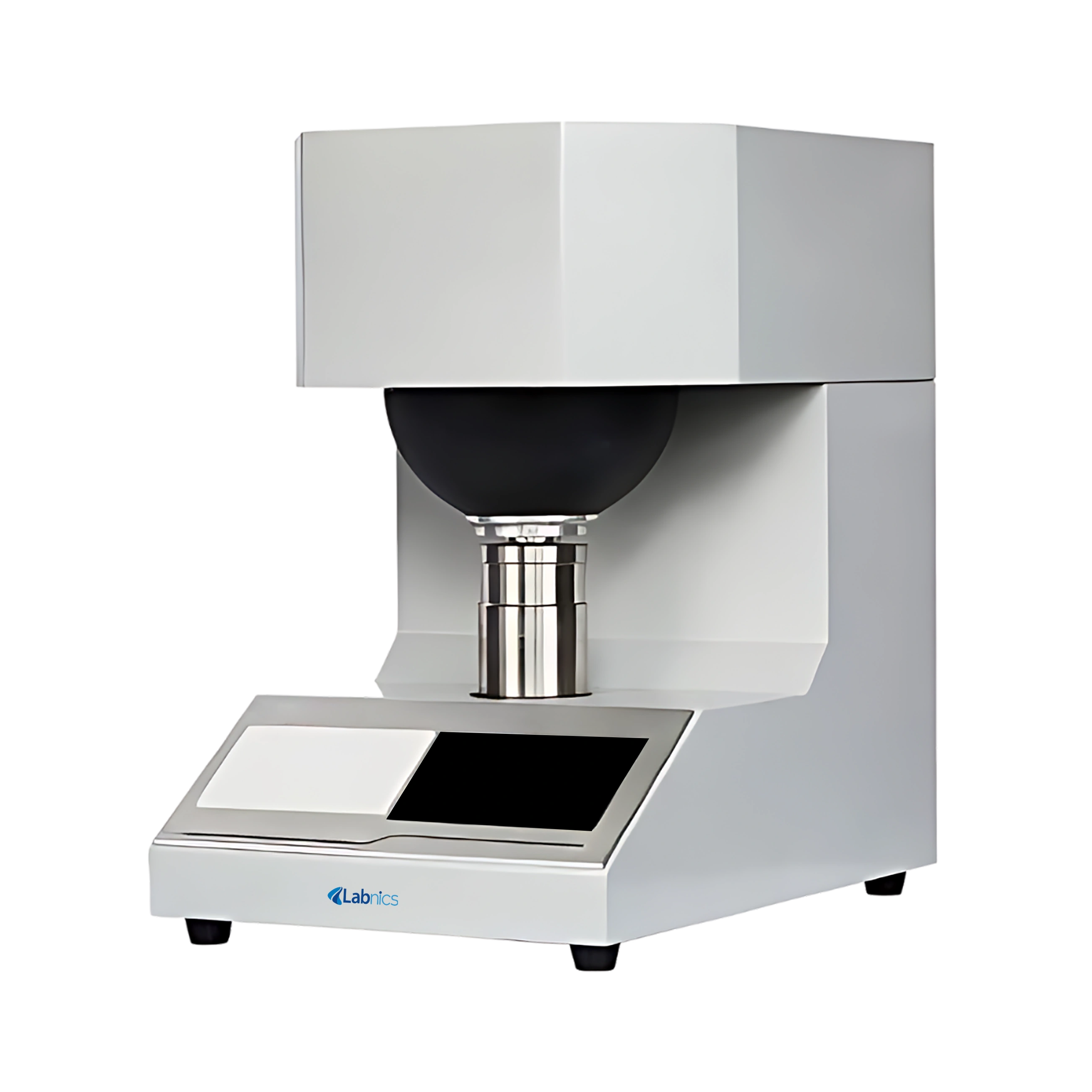

Automatic Colorimeter NACM-100
Available Models
NACM-100
Get a Custom Quote

Contact us for pricing & availability

Key Highlights

At-a-glance performance metrics
🎨
Chromaticity Accuracy
≤ 0.0001
📐
Sample Size
≥ 30 mm plate
🌡️
Working Temp
10 – 35°C
🖨️
Printer
Built-in Thermal
🔋
Power
50 W
⚖️
Weight
12.5 kg
📋

Automatic Colorimeter NACM-100

Full Technical Specifications
Working Environment
10 to 35°C, Humidity ≤ 85%
Sample Size
Plate ≥ 30 mm, thickness ≤ 40 mm
Indication Accuracy
Chromaticity coordinate ≤ 0.0001; others ≤ 0.01
Data Stability
±5°C temperature range, ≤ 0.1
Repeatability Accuracy
Coordinate ≤ 0.003; R457 ≤ 0.03
Specular Reflectance Accuracy
Rx, Ry, Rz ≤ 0.03; Chromaticity ≤ 0.1 (after 30 min preheating)
Print
Built-in thermal printer
Communication Interface
RS232
Power Consumption
50 W
Power Supply
AC (100 to 240)V, 50/60 Hz
Dimensions (L × W × H)
380 × 260 × 410 mm
Weight
12.5 kg
