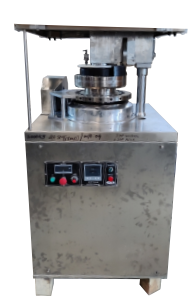

The Automatic Double Sided 27 STN D Tooling Tablet Press Machine is a high-capacity double-sided tablet press available in three type configurations — Type B4, 27 STN. D, 35 STN. B, and 45 STN. BB. Engineered for pharmaceutical production, it delivers precision tablet compression with adjustable turret RPM, upper punch penetration control, and robust electric motor output. Ideal for high-volume tablet manufacturing meeting GMP standards.

Available Models

27 STN. D

35 STN. B

45 STN. BB

Get a Custom Quote

⚡

Key Highlights

At-a-glance performance metrics

🏭

Max Output

90,000 tab/hr

⚙️

Max Stations

45 STN

🔩

Max Pressure

10 Ton (100 kN)

📐

Max Tablet Dia.

23 mm

⚡

Electric Motor

7.5 HP / 1440 RPM

🔄

Turret RPM

16 to 40 RPM

📋

Full Technical Specifications

Comparative model parameters — Type B4

Parameter	27 STN. D	35 STN. B	45 STN. BB
Type of Tooling	D	B	Die BB & punch B
No. of Stations	27	35	45
Max. Operating Pressure	10 Ton (100 kN)	6.5 Ton (65 kN)	6.5 Ton (65 kN)
Max. Tablet Diameter	23 mm	16 mm	11.0 mm
Max. Depth of Fill	20 mm	17.5 mm	17.5 mm
Max. Thickness of Tablet	18 mm	11.1 mm	11.1 mm
Output Tab./Hr.	48,000 to 1,29,000	70,000 to 1,68,000	90,000 to 2,16,000
Upper Punch Penetration	1.5 mm to 8 mm
Turret RPM (min./max.)	16 to 40 RPM
Electric Motor	7.5 HP / 1440 RPM / 3 Ph.
Overall Dimensions (mm)	1981 × 1830 × 1988 H
Net Weight	1650 Kg. (Approx.)
Gross Weight	1850 Kg. (Approx.)
