Automatic Density Meter NAD-100 offers a measurement range from 0 g/cm³ to 3 g/cm³, delivering accurate analysis. It has multiple output options, allowing effortless data export. This density meter includes an automated sampling system for improved testing efficiency. It includes density and alcohol concentration test modes for versatile use. Our unit also has a smart interface and three-level user management for secure access.

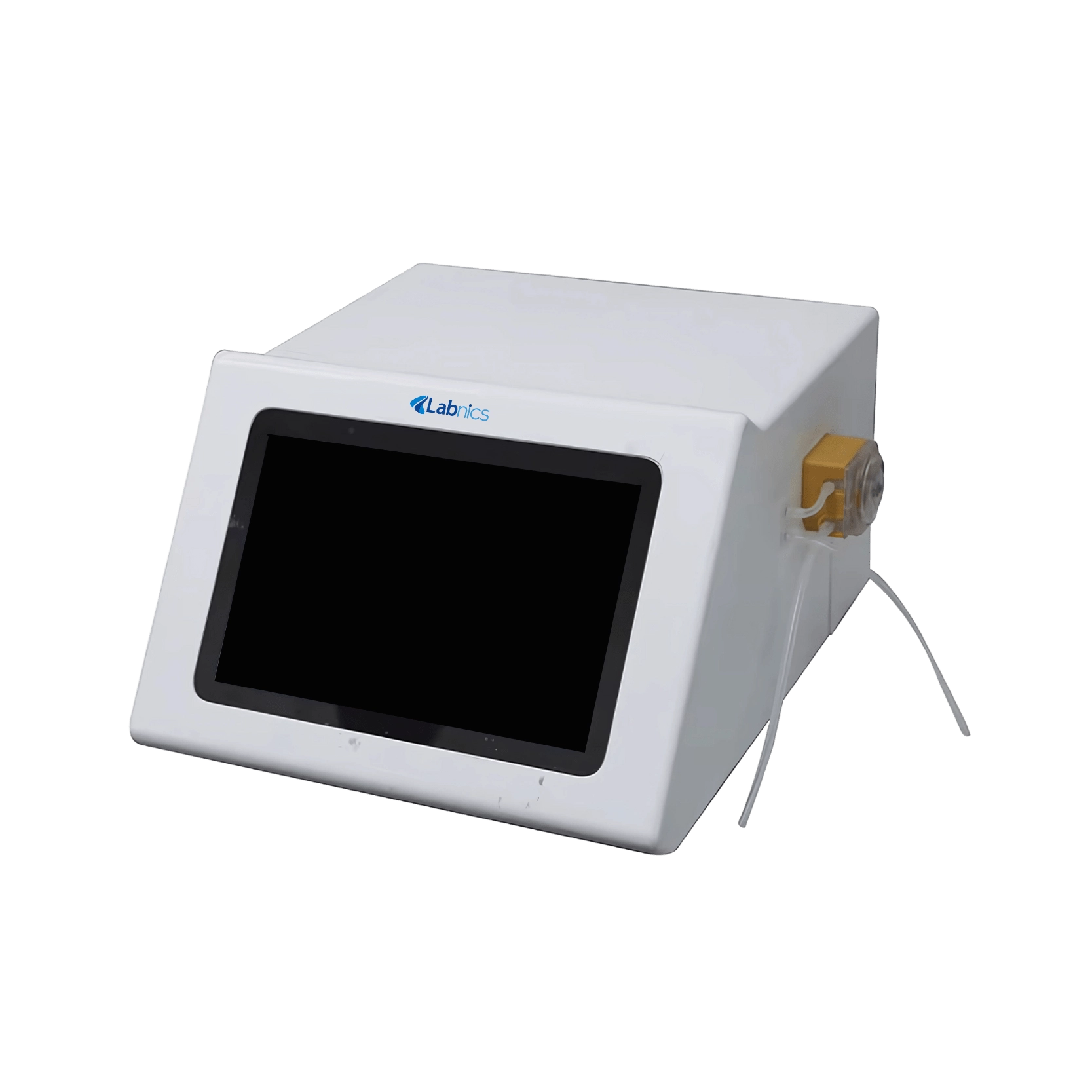

Automatic Density Meter NAD-100
Available Models
NAD-100
NDSM-101
NLDM-100
NTDT-101
Get a Custom Quote

Pricing varies by model & configuration

Key Highlights

At-a-glance performance metrics
⚖️
Measurement Range
0 – 3 g/cm³
🌡️
Temp Control
5°C – 45°C
🎯
Accuracy
±0.00003 g/cm³
🖥️
Display
10.4" Touch TFT
💾
Data Storage
16 GB
🔁
Repeatability
±0.00001 g/cm³
📋

Automatic Density Meter NAD-100

Full Technical Specifications
Measurement Range
NAD-100: 0–3 g/cm³ | NDSM-101: 0–3000 kg/m³ | NLDM-100: 0.001 g/cm³ | NTDT-101: ≤500 g
Temperature Control Range
5°C to 45°C
Temperature Control Stability
±0.02°C
Repeatability
±0.00001 g/cm³
Accuracy
±0.00003 g/cm³
Resolution
0.00001 g/cm³
Display
10.4-inch TFT Color Touch Screen
Data Storage
16G
Temperature Control Method
Peltier Temperature Control
Output
USB, RS232, RJ45, SD Card, USB Flash Drive
Sampling Process
Fully Automatic (Compatible with Manual)
Test Mode
Density, Alcohol Concentration, Custom Formula
User Management
Three-level Authority Management
Audit Trail
Yes
Electronic Signature
Yes
Export File Formats
PDF and Excel
Printing Type
WIFI Printing, Serial Port Printing
Power Supply
110V to 230V, 50Hz / 60Hz
Dimensions (L × W × H)
480 × 320 × 200 mm
Weight
8 Kg
