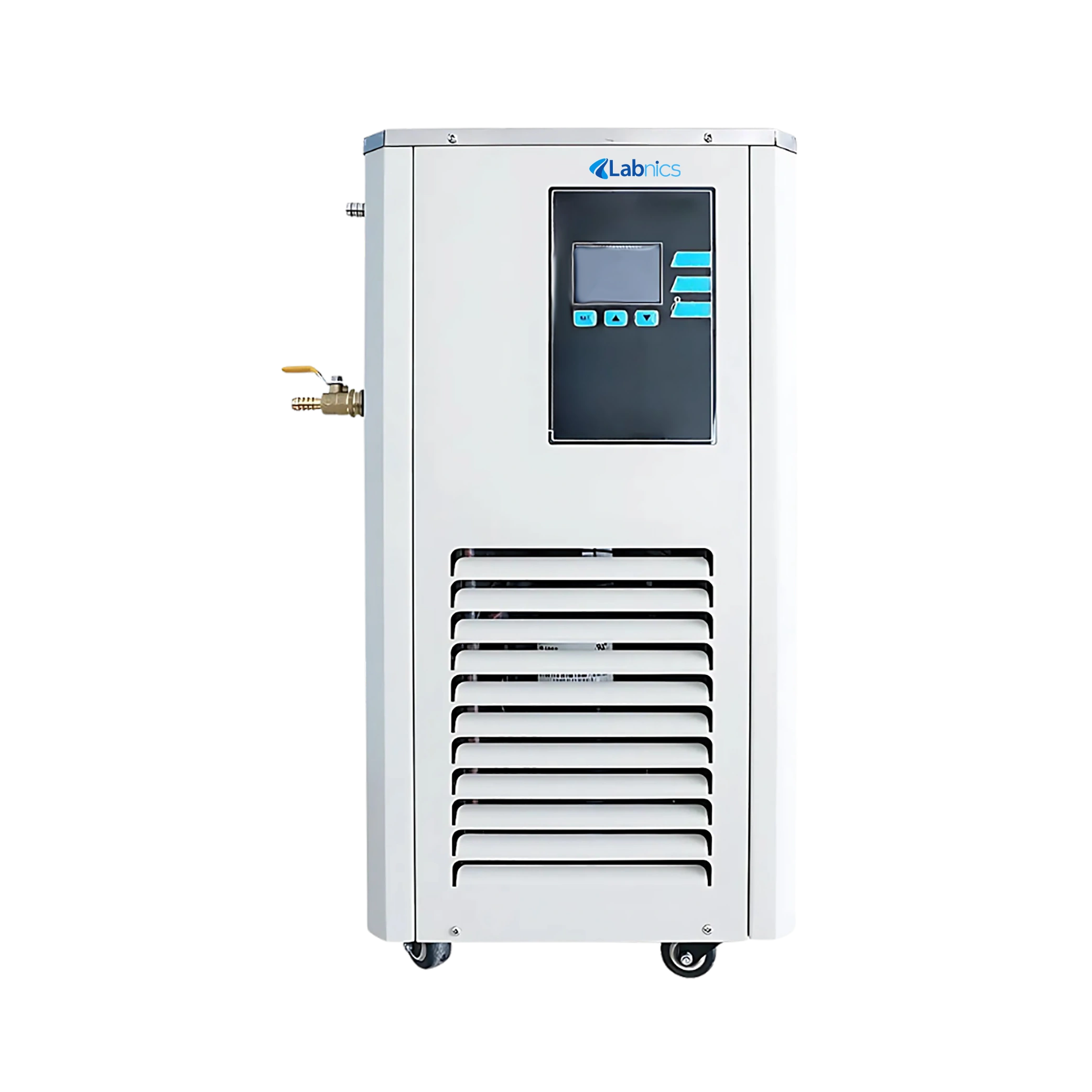

Recirculating Chiller NRC-100 offers a temperature range from -10°C to RT for reliable low-temperature operations. It features a microcomputer control system for accurate and stable temperature regulation, a 6.8-litre tank for continuous coolant circulation, and uses R134A refrigerant for efficient eco-friendly cooling. Includes a bright digital LCD for clear temperature display and simple control.
Recirculating Chiller NRC-100
Available Models
NRC-100
NRC-208
NRC-303
Get a Custom Quote

Pricing varies by model & capacity

Key Highlights

At-a-glance performance metrics
❄️
Temp Range
-10°C to RT
🪟
Max Tank Vol.
Up to 98 L
🎯
Temp Accuracy
±0.1°C
💧
Flow Rate
20–40 L/min
Cooling Capacity
1550 W
🔋
Power Consumption
652 W
📋

Recirculating Chiller NRC-100

Full Technical Specifications
Tank Capacity
NRC-100: ~6.8 L  |  NRC-208: ~21 L  |  NRC-303: ~98 L
Temperature Range
-10°C to RT
Room Temperature
5 to 35°C
Temperature Accuracy
±0.1°C
Temperature Sensor
PT100
Room Humidity
≤70% ventilation
Flow
20 to 40 L/min
Lifting Head
4 to 6 M
Pressure
≤0.4 MPa
Heat Exchange Area
4.2 m²
Air Volume
760 m³/h
Refrigerant
R134A
Condensing Coil
Φ8 Copper tube nickel plated
Material
Cold plate spray anticorrosion
Compressor Type
1P
Compressor Quantity
1
Screen Display
LCD screen, key operation
Safety Protection
Delay, overcurrent, overheating
Compressor Power
500 W
Cooling Capacity
1550 W
Total Power Consumption
652 W
Power Supply
220V, 50Hz, 1 Phase
Outer Loop Interface
Φ12 mm
Tank Dimension
Φ200 × 185 mm
Product Dimension
423 × 485 × (760+400) mm
Packaging Dimension
570 × 460 × 790 mm
