Pharmaceutical Machinery

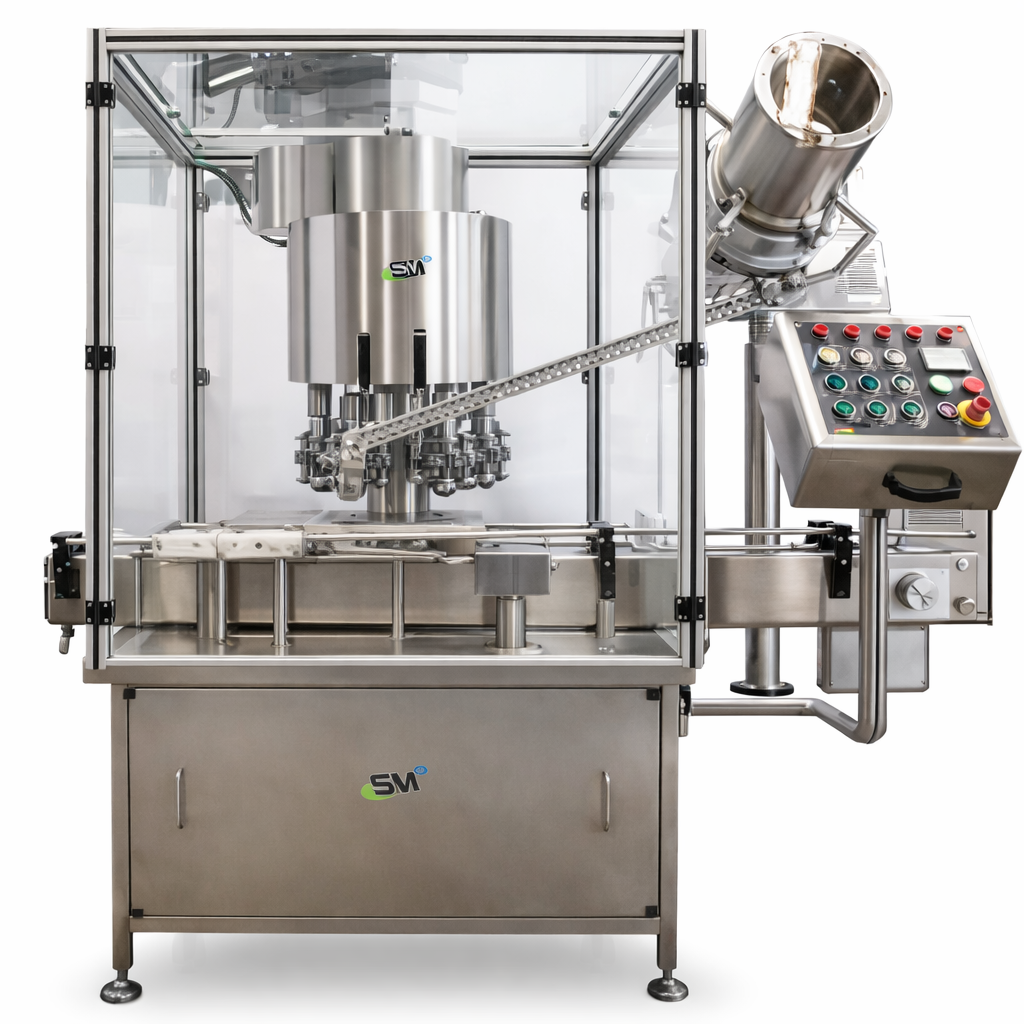

Automatic High Speed 4/6/8 Head ROPP/Screw Capping Machine SMPSC-150

The SMPSC-150 Automatic High Speed ROPP/Screw Capping Machine is available in 4, 6, and 8 sealing head configurations, delivering outputs from 3,600 to 12,000 bottles/hour. Direction of movement is Left to Right. It features an AC drive conveyor motor for the cap feeding bowl, with conveyor height adjustable from 860 to 910 mm. Change parts required include: Container Star Wheel, Back Guide, Feed Worm, Cap Die, Delivery Chute, Bowl & S.S. Star Wheel.
Automatic ROPP Screw Capping Machine SMPSC-150
Available Configurations
4 Head
6 Head
8 Head
Get a Custom Quote

Contact us for pricing & availability

⚡

Key Highlights

At-a-glance performance metrics
🚀
Max Output
12,000 bottles/hr
🔩
Sealing Heads
4 / 6 / 8 Nos.
⚡
Max Motor Power
3 HP / 415V / 50 Hz
📏
Conveyor Height
860 – 910 mm
📦
Max Gross Weight
1,400 Kgs (approx.)
➡️
Direction
Left to Right
📋

Full Technical Specifications

Comparative model parameters — 4 / 6 / 8 Head
Parameter4 Head6 Head8 Head
Output / Hour3,600 to 6,000 bottles3,600 to 9,000 bottles4,000 to 12,000 bottles
No. of Sealing Heads4 Nos.6 Nos.8 Nos.
Main Motor2.0 HP / 415V / 50 Hz, 300 Watt2.0 HP / 415V / 50 Hz, 300 Watt3 HP / 415V / 50 Hz
Cap Feeding Bowl Motor0.25 HP with AC Drive; Conveyor Motor 0.5 HP with AC Drive
Height of Conveyor860 mm to 910 mm
Machine Dimensions2135 (L) × 1120 (W) × 2250 (H) mm (approx.)2150 (L) × 1120 (W) × 2250 (H) mm (approx.)2135 (L) × 1200 (W) × 2225 (H) mm (approx.)
Case Dimensions2650 (L) × 1250 (W) × 2250 (H) mm (approx.)2650 (L) × 1250 (W) × 2250 (H) mm (approx.)2650 (L) × 1350 (W) × 2250 (H) mm (approx.)
Net Weight900 Kgs. (approx.)900 Kgs. (approx.)1,050 Kgs. (approx.)
Gross Weight1,250 Kgs. (approx.)1,250 Kgs. (approx.)1,400 Kgs. (approx.)
Change Parts Required(A) Container: Star Wheel, Back Guide, Feed Worm   (B) Cap Die, Delivery Chute, Bowl & S.S. Star Wheel
