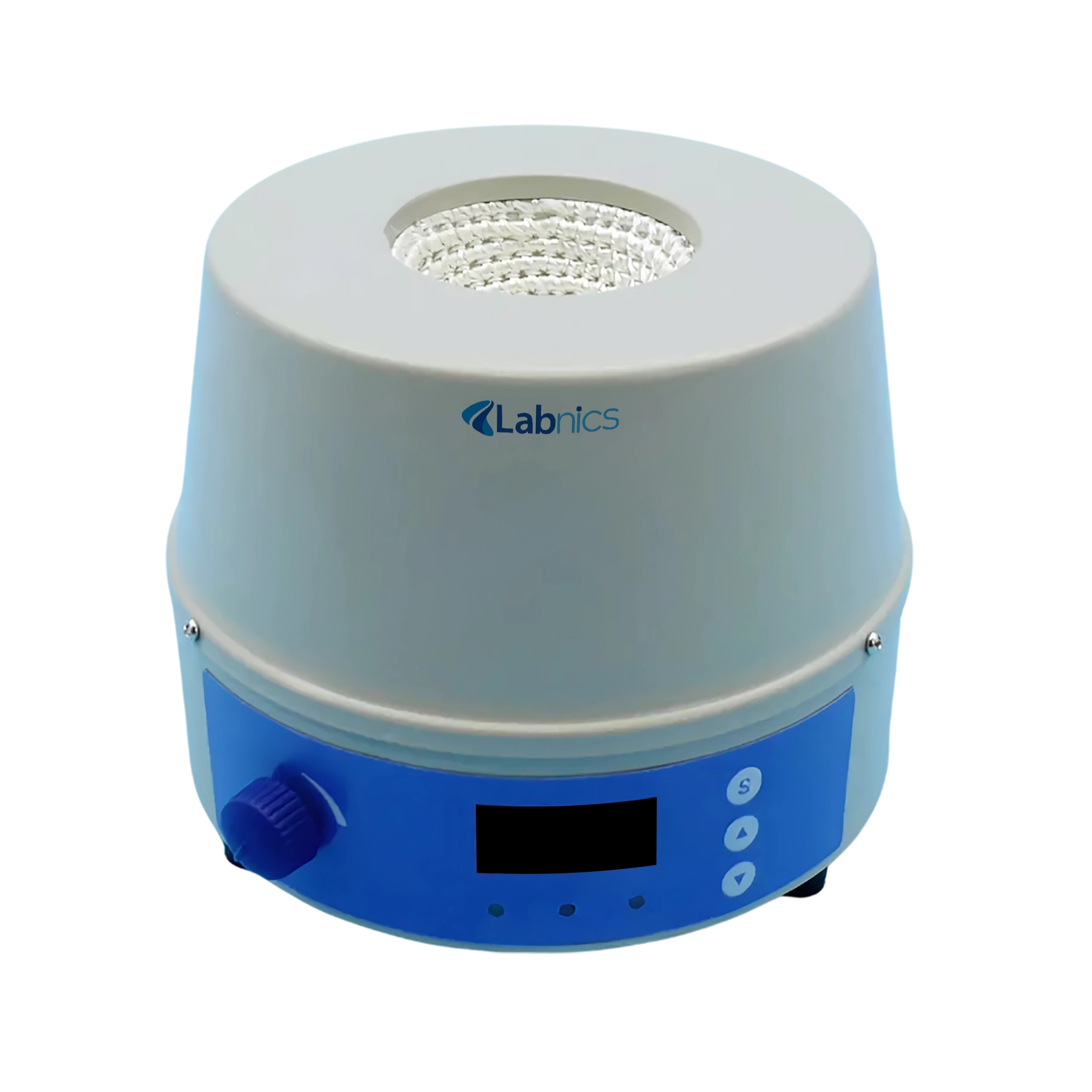

Digital Heating Mantle NDHM-100 is a compact laboratory instrument equipped with a PID temperature controller for uniform heat distribution in round-bottom flasks. Uses a Nichrome wire heating element with a maximum temperature of 450°C and continuous working time. Designed to securely hold flasks while keeping the top portion visible during operation.
Digital Heating Mantle
Available Models
NDHM-100
NEHM-101
Get a Custom Quote

Contact us for pricing & availability

🔥

Key Highlights

At-a-glance performance metrics
🌡️
Max Temperature
450°C
Power
80 W
📦
Capacity
50 / 100 ml
🔌
Power Supply
110/220V
⚖️
Net Weight
2.5 kg
⏱️
Working Time
Continuous
📋

Digital Heating Mantle NDHM-100

Full Technical Specifications
Capacity
NDHM-100: 50 ml  |  NEHM-101: 100 ml
Heating Mode
Surface Heating Conduction
Maximum Temperature
450°C
Power
80 W
Heating Element
Nichrome Wire
Working Time
Continuous
Exterior Dimension
Φ 220 × 165 mm
Packaging Dimension
230 × 215 × 195 mm
Power Supply
AC 110 / 220 V, 50 / 60 Hz
Net Weight
2.5 Kg
Gross Weight
2.8 Kg
