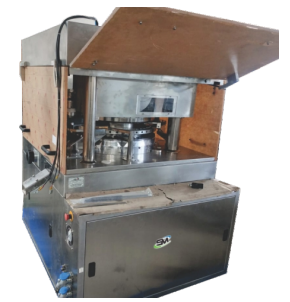

The Automatic Double Rotary High Speed Tablet Press Machine SMP-II-37 D Tooling is engineered for high-throughput pharmaceutical tablet production. Available in three station configurations — SMP-II-37, SMP-II-45, and SMP-II-61 — it supports D and BB tooling types, offering outputs up to 4,39,200 tablets per hour. With a robust powder feeder motor and a compact machine footprint, it is ideal for demanding GMP-compliant production environments.

Available Models

SMP-II-37

SMP-II-45

SMP-II-61

Get a Custom Quote

⚡

Key Highlights

At-a-glance performance metrics

🏭

Max Output

4,39,200 tab/hr

⚙️

Max Stations

61 STN

🔩

Max Pressure

10 Ton

📐

Max Tablet Dia.

23 mm

⚡

Main Motor

7.5–10 HP

📦

Gross Weight

3800 Kg

📋

Full Technical Specifications

Comparative model parameters

Parameter	SMP-II-37	SMP-II-45	SMP-II-61
No. of Stations	37	45	61
Type of Tooling	D	DB	BB
Max. Operating Pressure	10 Ton	10 Ton	6.5 Ton
Max. Tablet Dia.	23 mm	18.50 mm	11.1 mm
Depth of Fill	20.00 mm	17.00 mm	17.00 mm
Output Tab./Hr.	53,280 to 2,66,400	64,800 to 3,24,000	79,200 to 4,39,200
Upper Punch Penetration	3 to 8 mm
Main Electric Motor	7.5 KW / 10 HP / 1440 RPM / 3 ph.
Powder Feeder Motor	0.30 KW / 0.5 HP / 1440 RPM / 3 ph.
Machine Dimension	1344 (L) × 1430 (W) × 1485 (H) mm — without open guard
Machine Dimension (with guard)	2350 (L) × 2300 (W) × 2080 (H) mm
Net Weight (approx.)	3200 Kg.
Gross Weight (approx.)	3800 Kg.
