Pharmaceutical Machinery

Automatic Dry Injectable Line — Powder Filling Machine SMPPF

The SMPPF Series Automatic Dry Powder Filling Machine follows a strict "No Vial – No Filling" principle to eliminate wastage of costly powder. Designed to cGMP standards, all contact parts are SS 316L with quick changeover using minimum tools. Features multiple dosing systems, built-in rubber stoppering unit, variable A.C. frequency drive, and S.S. square pipe frame. Available in SMPPF-120 and SMPPF-240D models with outputs up to 14,400 vials/hr.

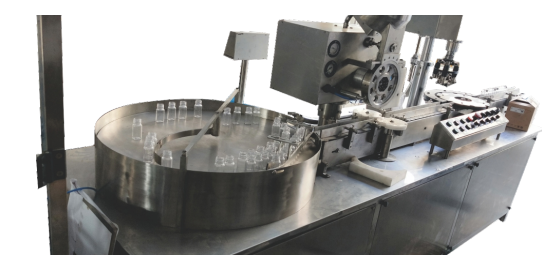

Automatic Dry Injectable Powder Filling Machine SMPPF
Available Models
SMPPF-120
SMPPF-240D
Get a Custom Quote

Contact us for pricing & availability

⚡

Key Highlights

At-a-glance performance metrics
🚀
Max Output
14,400 vials/hr
🧪
Container Dia.
25 mm – 58 mm
📐
Fill Capacity
50 mg – 6 GMS
🎯
Accuracy
±1%
💨
Compressed Air
Max 2 Kg/cm² Oil Free
⚡
Electrical Load
5–6 HP / 410V 3Ph
📋

Full Technical Specifications

Comparative model parameters
ParameterSMPPF-120SMPPF-240D
Product Rate30–120 Vials/Min; 7,200 Vials/Hrs Max30–240 Vials/Min; 14,400 Vials/Hrs Max
Container Diameter25 mm to 58 mm25 mm to 58 mm
Container Height36 mm to 95 mm36 mm to 95 mm
Container Neck Diameter20 mm, 28 mm & 32 mm Butyl20 mm, 28 mm & 32 mm Butyl
Fill Capacity50 mg to 1.5 GMS (change parts); up to 6 GMS by multiple dosing50 mg to 1.5 GMS (change parts); up to 6 GMS by multiple dosing
Accuracy±1% (consistency & uniformity of bulk density, RH below 28%)±1% (consistency & uniformity of bulk density, RH below 28%)
Optional AccessoriesPure Air Filter, Vacuum Pump, Oil Free Air Compressor, Online Pre-Media Filling, PLC with MMI Aluminium Profile CabinetPure Air Filter, Vacuum Pump, Oil Free Air Compressor, Online Pre-Media Filling, PLC with MMI Aluminium Profile Cabinet
Compressed AirMax 2 Kg./CM2 Oil FreeMax 2 Kg./CM2 Oil Free
Vacuum25 HG @ 300 LPM Displacement25 HG @ 300 LPM Displacement
Relational HumidityBelow 28%Below 28%
Overall Dimension2100 (L) × 900 (W) × 1800 (H) mm (includes main machine with in-feed turn table)3000 (L) × 1000 (W) × 1800 (H) mm (includes main machine with in-feed turn table)
Electrical Load5 HP / 3.75 KW, 410V, 3 Phase6 HP / 4.5 KW, 410V, 3 Phase
