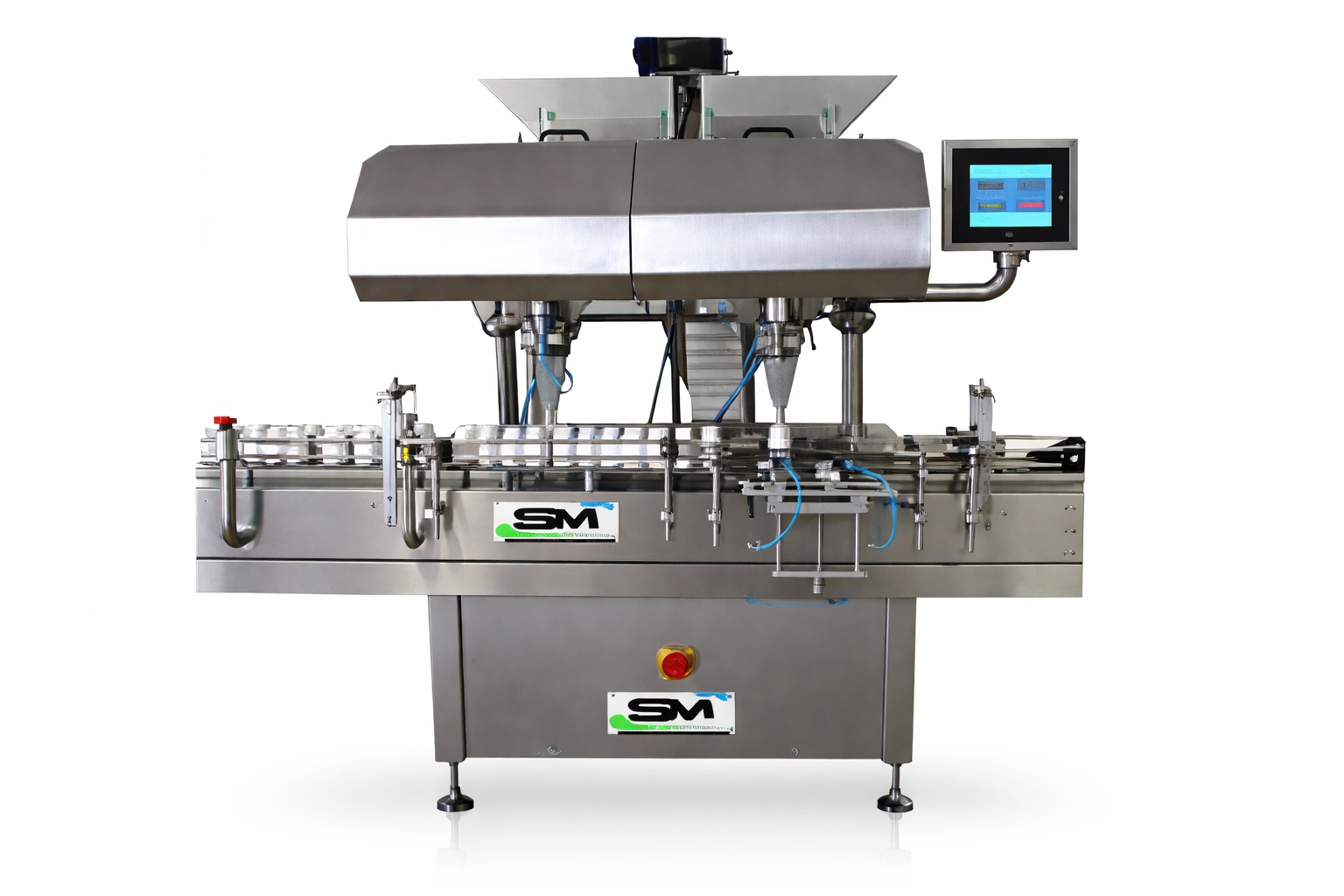

The SMP Tablet Counting & Filling Machine adopts advanced vibration and multi-channel feeding with computer control and dynamic scan counting, automatically transferring bottles and running system tests. Designed to cGMP standards, it integrates light and electrical machinery into one compact unit — suitable for tablet or capsule counting and filling in pharmaceutical and food industries. It supports three technology bases: electronic tablet & capsule counting, disk type counting, and track type counting lines.
Available Models
SMPCF-5
SMPCF-10
SMPCF-20
SMPCF-30
SMPCF-40
SMPCF-60
SMPCF-80
SMPCF-100
SMPCF-120
Get a Custom Quote
Contact us for pricing & availability
⚡
Key Highlights
At-a-glance performance metrics
🍶
Output Speed
Up to 60 bottles/min
💊
Tablet Diameter
5 mm – 22 mm
🔵
Capsule Sizes
No. 0 to 5
📺
Control Panel
10" PLC HMI Touch
⚡
Power Supply
1 HP, 230V/50Hz
📦
Container Types
Glass, HDPE, PET, LDPE
📋
Channel Counting Machine — Model Range
Channels vs model type & bottle output
Channels
Model Type
Description
1
SMPCF-5
1 to 5 Bottles (Depending Upon the Product Count)
2
SMPCF-10
1 to 10 Bottles (Depending Upon the Product Count)
4
SMPCF-20
1 to 20 Bottles (Depending Upon the Product Count)
6
SMPCF-30
1 to 30 Bottles (Depending Upon the Product Count)
8
SMPCF-40
1 to 40 Bottles (Depending Upon the Product Count)
12
SMPCF-60
1 to 60 Bottles (Depending Upon the Product Count)
16
SMPCF-80
1 to 80 Bottles (Depending Upon the Product Count)
24
SMPCF-100
1 to 100 Bottles (Depending Upon the Product Count)
32
SMPCF-120
1 to 120 Bottles (Depending Upon the Product Count)
🔧
Full Technical Specifications
Detailed machine parameters
Control System
PLC & HMI Colour Touch Screen 10" with Imported Sensor Base Counting
Tablet Diameter
5 mm to 22 mm; Irregular Shape Pills: 3 mm to 13 mm; Pills: 3 mm to 13 mm
Capsule Sizes
Capsules 0 to 5 / Capsules 0 to 5 / Capsules 0 to 5 / Capsules 0 to 5
Container Size
Neck Dia: 25 mm to 40 mm; Body Dia: 100 mm; Bottle Height: 39 mm to 241 mm
