Laboratory Equipment

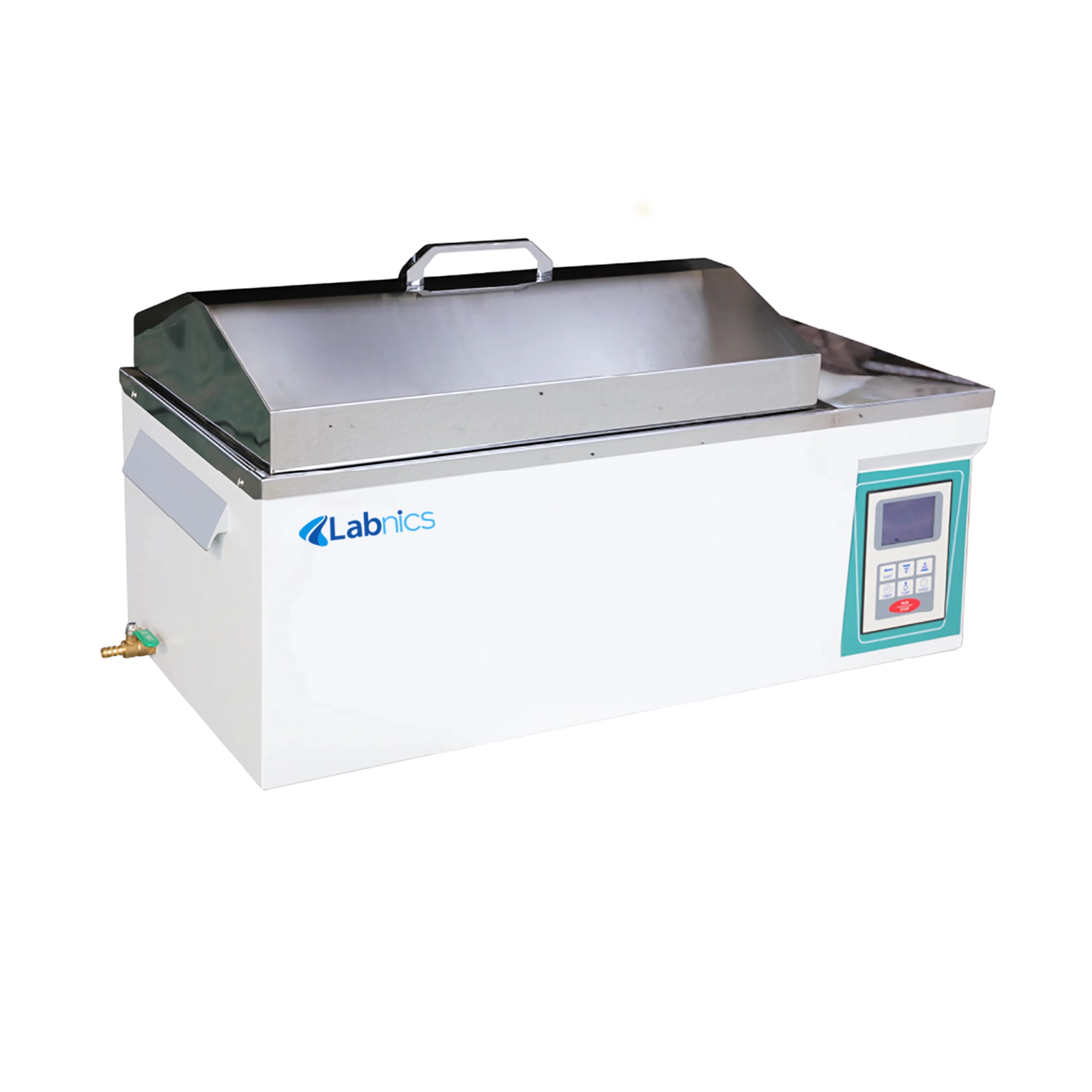

Shaker Water Bath

The Shaker Water Bath NSWB-100 has a capacity of 31 L and offers an operating temperature range from RT to 100°C. It is constructed with a durable stainless-steel body for long-lasting performance. Our unit is equipped with microprocessor PID control, which ensures precise and stable temperature regulation. It includes a tube rack and water bath flask seat for various needs. This water bath has a large LCD that shows the measured value, set value, and time-setting.
shaker-water-bath
Available Models
NSWB-100
Get a Custom Quote

Contact us for pricing & availability

Key Highlights

At-a-glance performance metrics
Temp Range
RT to 100°C
Capacity
31 L
Frequency Range
20–180 r/min
Controller
LCD PID
Power Rating
1.5 kW
Amplitude
16 or 24mm

Full Technical Specifications — NSWB-100

Complete machine parameters
Operating Temperature Range
RT to 100°C
Temperature Resolution
0.1°C
Temperature Motion
±0.1°C
Temperature Uniformity
±0.2°C
Internal Capacity
31 L
Operating Mode
Reciprocating Oscillation with Thermostatic Water Bath
Reciprocal Oscillation (Amplitude)
16 or 24mm
Reciprocating Frequency Range
20 to 180 (r/min)
Reciprocating Frequency Accuracy
±1rpm
Water Tank Material
Mirror stainless steel
Outer Shell Material
Cold rolling steel electrostatic spraying exterior
Upper Cover Material
Mirror stainless steel
Insulating Layer Material
Polyurethane
Heater Material
Stainless Steel Heater
Driving Mode
Crankshaft + double link + four wheels
Shelf
Mirror stainless steel
Power Rating
1.5kW
Temperature and Reciprocating Control Mode
LCD PID Intelligent control
Setting Mode
Touch button setting
Temperature and Speed Display Mode
LCD Display
Timer
0 to 9999 min
Operation Function
Fixed value operation, timing function, auto stop, quickly stop start
Temperature Sensor
Pt100
Speed Sensor
Hoare
Additional Function
Deviation correction, menu keys locked, power-off memory
Safety Features
Over temperature alarm, menu locked, water full or shortage protection, motor shaft lock protection
Shock Basket Bearing
5 kg/layer
Spring Shock Basket Size
395 × 250 mm
Shock Basket Largest Single Size
100ml × 12 / 250 × 8 / 500 × 6 ml/piece
Water Tank Dimensions (W × L × H)
500 × 310 × 200 mm
Exterior Dimensions (W × L × H)
828 × 360 × 425 mm
Packing Dimensions (W × L × H)
910 × 500 × 600 mm
Power Consumption
1.5kW
